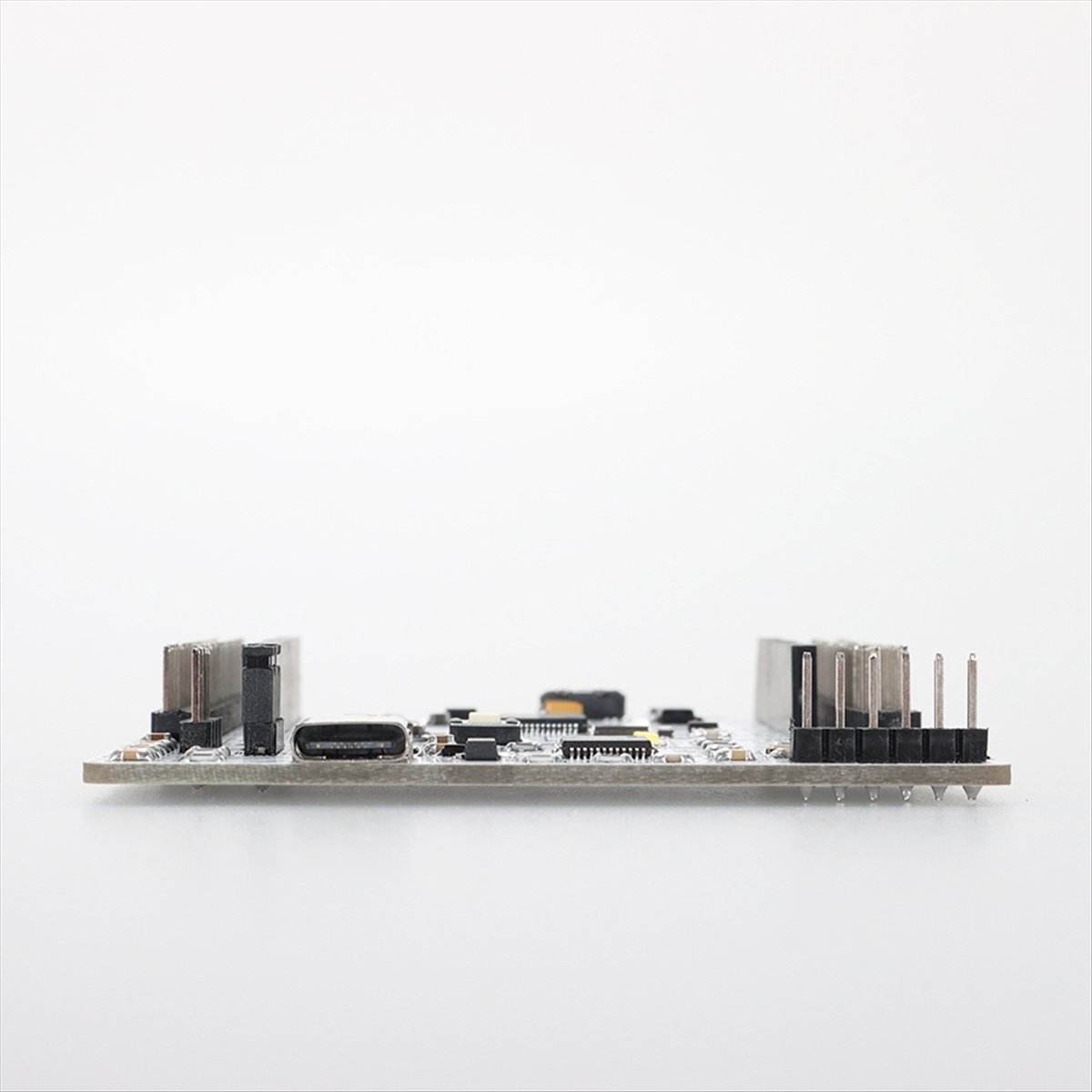

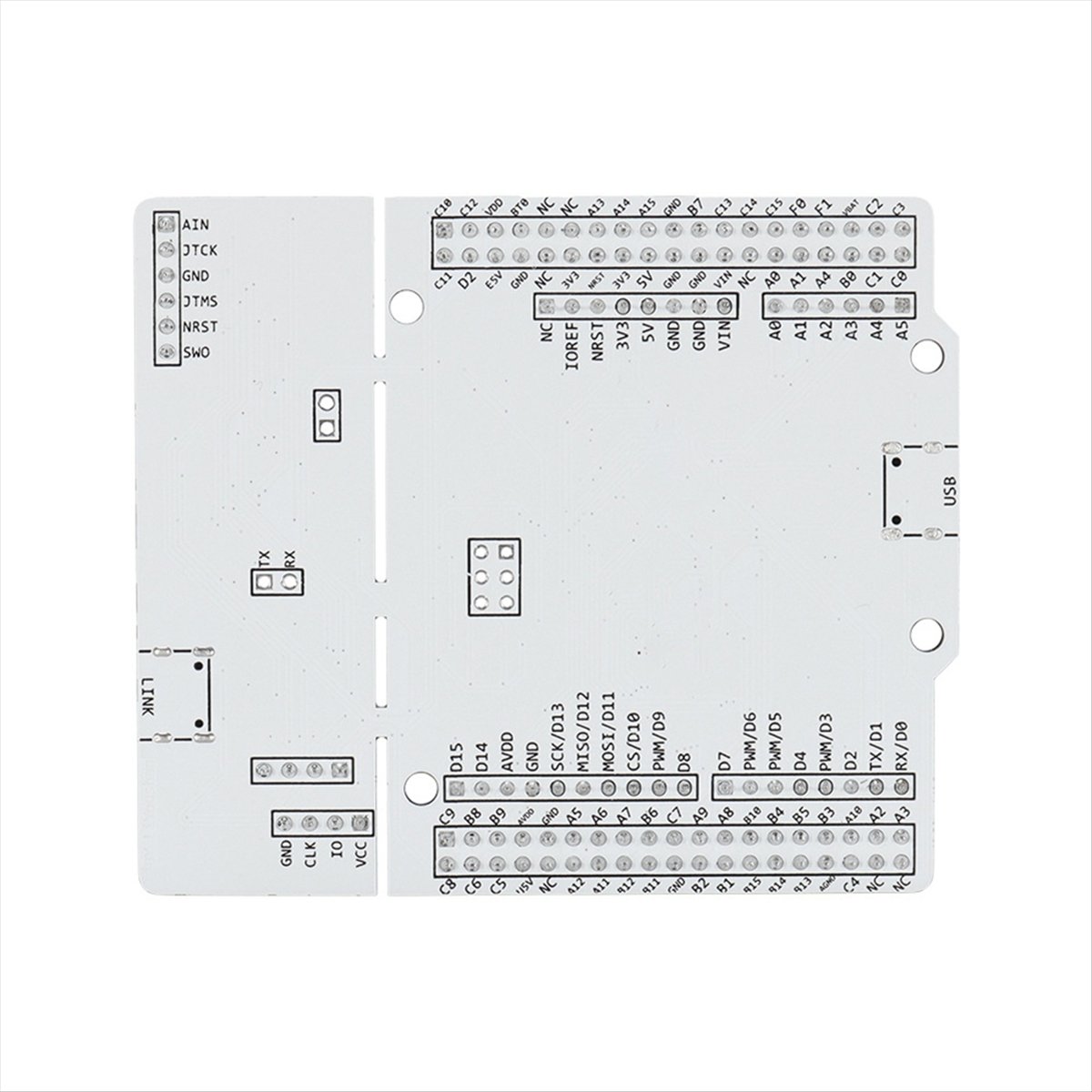

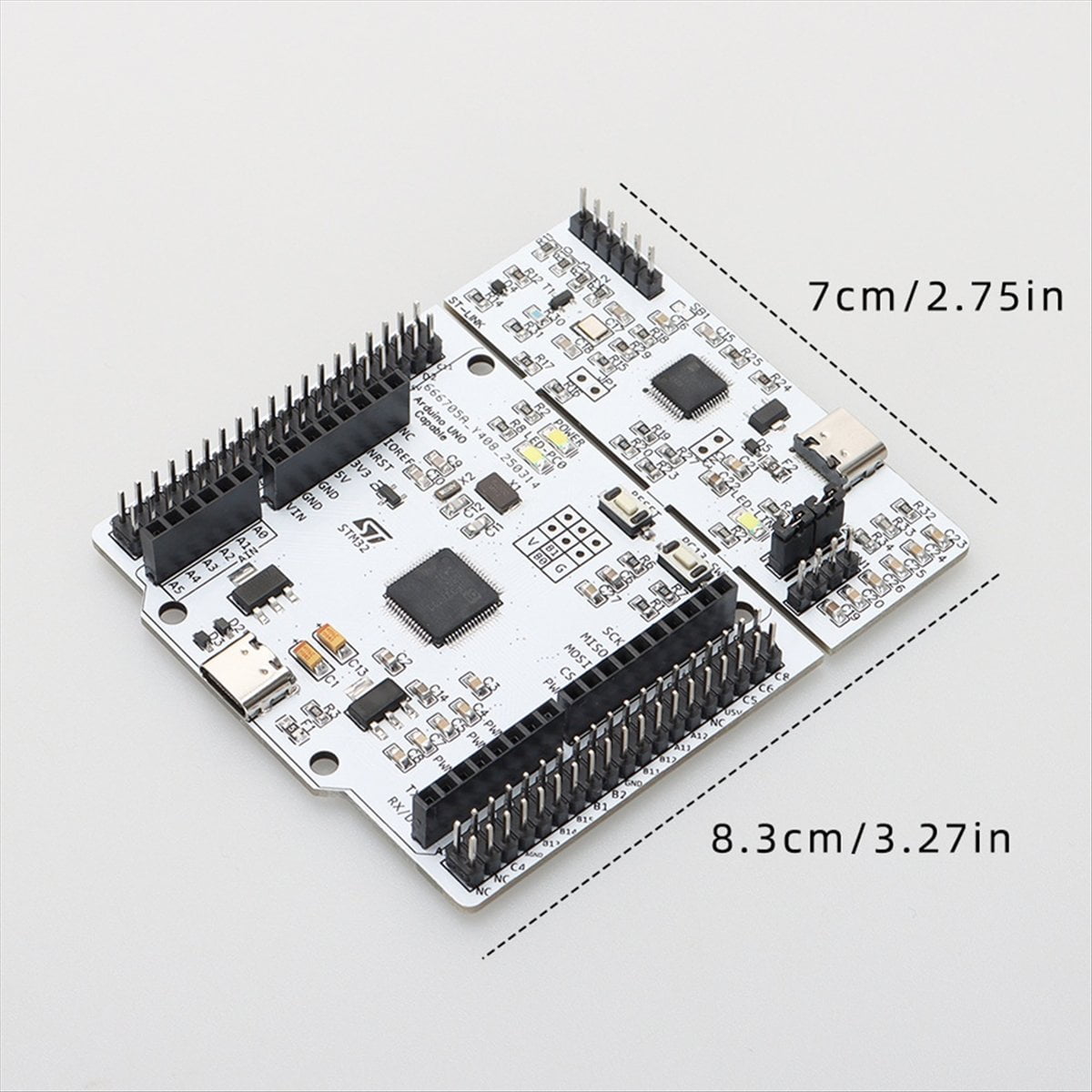

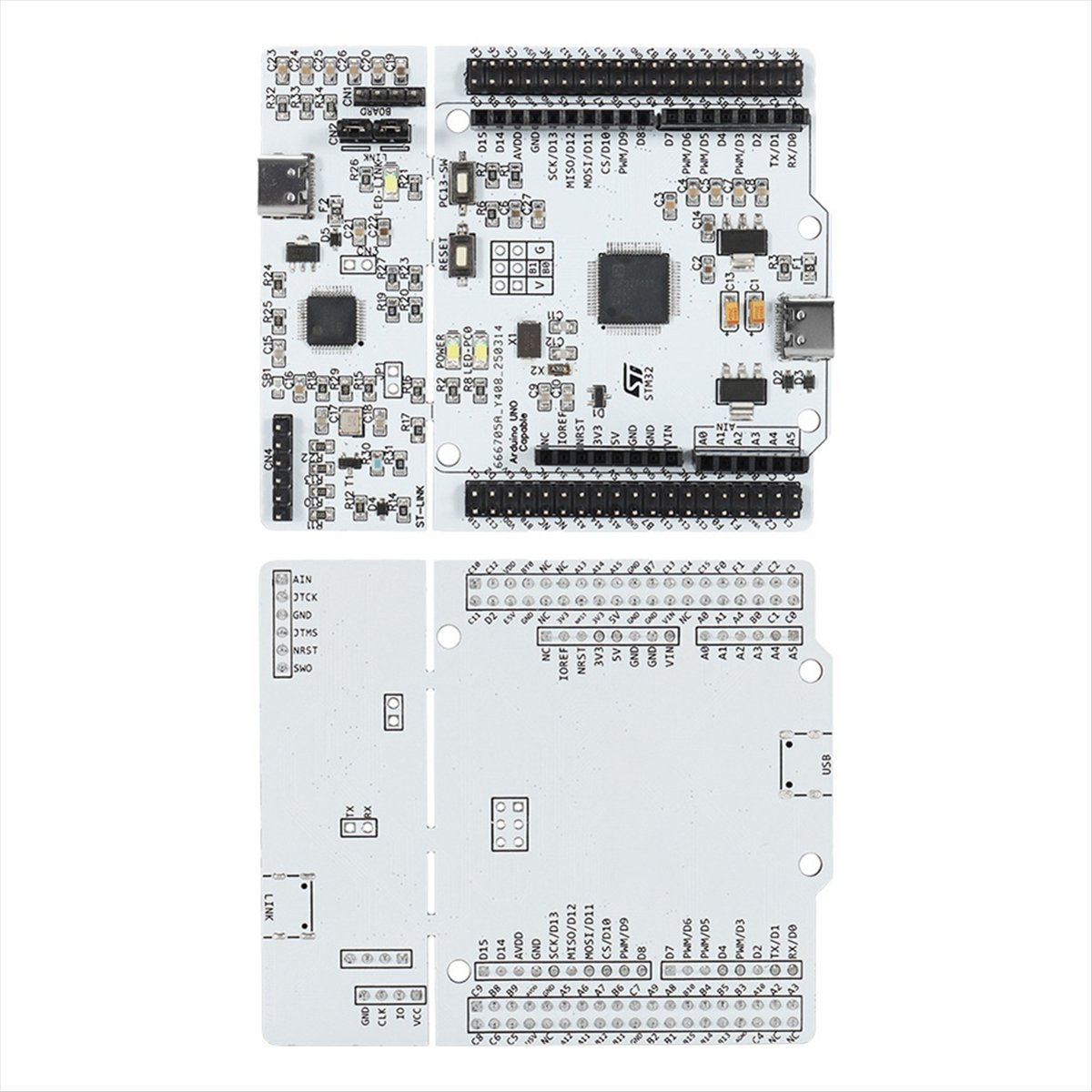

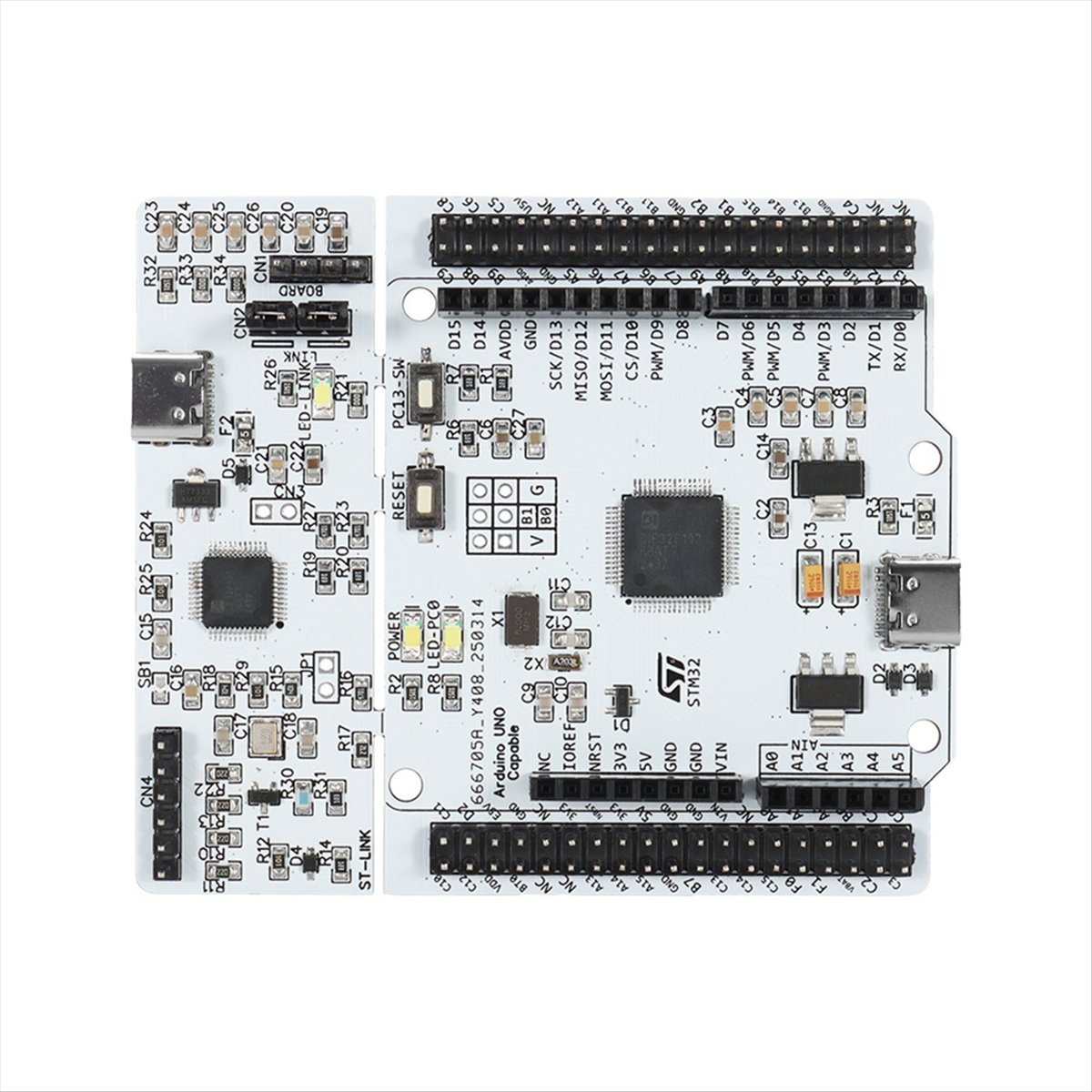

STM32G4 NUCLEO Development Board FOC Algorithm Motor Control Industrial Control Board Programming Motherboard,1 x Microcontroller motherboard

1 user LED shared with for ARDUINO<br>32.768 kHz crystal oscillator<br>Board connectors:<br>for ARDUINO Uno V3 expansion connector<br>ST Morpho expansion pin header for full access to all STM32 I/Os<br>Flexible power supply options: ST-LINK USB VBUS or external power<br>Comprehensive free software libraries and examples work with STM32Cube MCU package<br>Supports multiple integrated development environments (IDEs), including for IAR Embedded Workbench, for MDK-ARM and STM32CubeIDE<br>Some board-specific features<br>Second user LED<br>External or internal SMPS generates Vcore logic supply<br>24 MHz or 48 MHz HSE<br>User USB Device full speed, or USB SNK/UFP full speed<br>Cryptography<br>CAN FD transceiver<br>Board connectors:<br>Dedicated connector for external SMPS experiments<br>USB Type-C, Micro-B or Mini-B connector for ST-LINK<br>USB Type-C user connector<br>MIPI debug connector<br>CAN FD header<br>There are differences in printing between different production batches, which does not affect the use<br>Colour:As Shown<br>Material:plastic<br><br>Package Contents:<br>1 x Microcontroller motherboard<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• The STM32 Nucleo-64 board provides users with an affordable and flexible way to try out new concepts and build prototypes by choosing from a wide range of performance and power feature combinations available with STM32 microcontrollers. For compatible single boards, an internal or external SMPS significantly reduces power consumption in Run mode.
• for Arduino Uno V3 connectivity support and ST morpho headers allow the functionality of the STM32 Nucleo open development platform to be easily extended with a wide selection of professional shields.
• The STM32 Nucleo-64 board does not require any separate probes as it integrates the ST-LINK debugger/programmer.
• The STM32 Nucleo-64 board comes with STM32's comprehensive free software libraries and examples for use with the STM32Cube MCU package.
• STM32 microcontroller in LQFP64 package
